Equipped with direct dye-sublimation printer technology, the Smart 70 printer is designed to print high-quality ID cards with its 300 dpi resolution. An ideal choice for users who want extremely fast printing speeds.
- Printer Technology: Direct Dye-Sublimation | Edge-To-Edge
- Print Resolution: 300 dpi
- Hopper Capacity: Input 500 / Output 100 (Optional output hopper upgrade to 500 cards)
- Print Speed: Max 225 cards/hour (Full Colour) Max. 1,000 cards/hour (Mono)
- 3 Year Warranty
Please note, the double-sided version comes with a hybrid flipper designed to help print on both sides of the card.
- Stock: In Stock
Available Options
IDP Smart 70 ID Card Printer
Ideally suited to users who require large volume print requirements, this printer can produce high-quality ID cards every time. With the 300dpi printing technology, the IDP Smart 70 creates sharp, vibrant designs with your desired printer ribbons. The printer is built with a metal frame, ensuring the highest durability, which also makes it scratch-free.
The Smart 70 comes standard as single-sided, with an upgradable flipper module which helps you print double-sided cards. Its print speeds are like no other. You can produce 225 full colour cards or 1000 monochrome cards per hour, which makes this printer ideal for scaling your production, whether it's for events, large organisations and more. Alongside the quick printing speeds, IDP also features a 500-card input hopper with a 100-card output hopper.

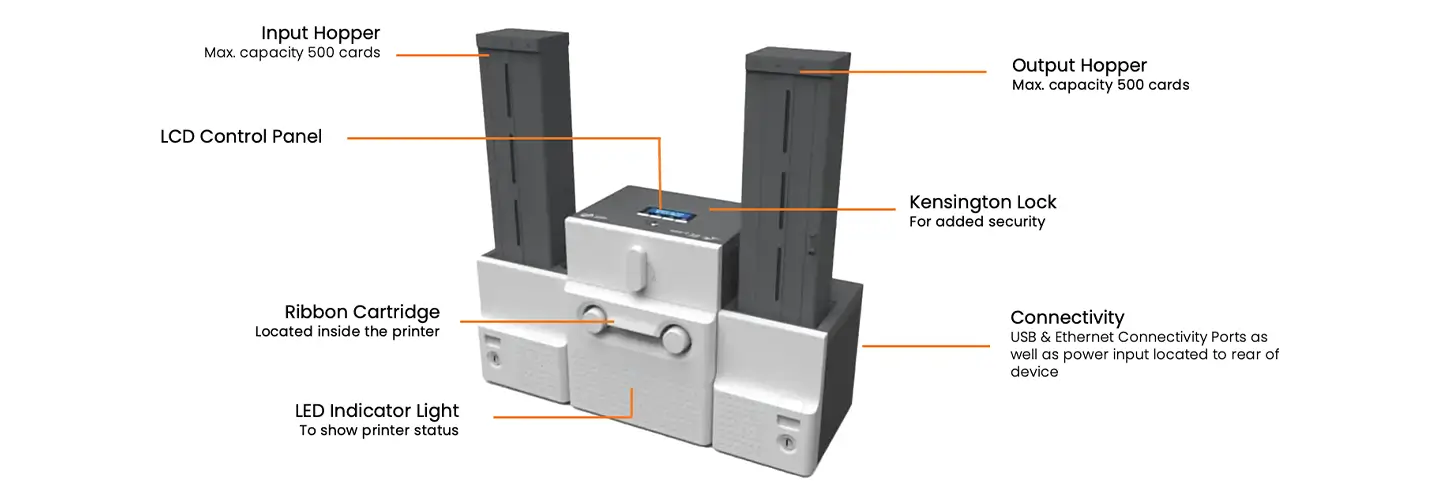

If you prefer to upgrade to the full system, we offer this as an option. This large-capacity printer is similar in specifications however, it offers both a 500-card input and output hopper, meaning you can leave the printer to produce your unique card designs without supervision. It is built with a metal frame, ensuring the highest durability, which also makes it scratch-free.
Printer upgrades are essential for a printer with this many capabilities. We offer a lamination unit and a flipper module which is designed to add a protective layer over your cards whilst printing double-sided designs. With these upgrades, you can essentially create your own unique printer based on your requirements.
Security is built in throughout the Smart 70 range. Every module includes a Kensington lock, and the printer itself uses PC and password authentication as standard, so only authorised users and machines can access it. For organisations that need more than printing, the Hybrid Flipper module can be upgraded to support magnetic stripe, contact and contactless smart card encoding, covering standards including ISO 7811, ISO 14443, MIFARE, DESFire and iCLASS. This means the same printer can handle both card production and access control encoding, without needing a separate system.
Features and Benefits:
- Direct Dye-Sublimation Printer Technology
- Produce a Large Volume of Cards (225 Full-Colour Cards/Hr)
- Standard 500 Input / 100 Output with Optional Upgrade for 500 Output
- Prints CR80 Sized Cards
- Increased Flexibility to Multiple Environments
- Extremely Accurate Card Feeding
- Laminator & Hybrid Flipper Module Upgrades
- USB & Ethernet Connectivity
- Windows, Linux, and MacOS Compatible
- Printer Warranty - 5 Years (* 3-year Printhead Warranty)
What's Included:
- IDP Smart 70 Card Printer (Choose Between Starter Pack or Full System)
- Printer Power Supply
- USB Cable
- Installation Disk
- Printer Guidebook for Easy Printing
| File Name | Size |
|---|---|
| IDP Smart 70 | Brochure & Spec Sheet (English) | 926.47KiB |
| IDP Smart 70 | User Manual (English) | 7.29MiB |
| IDP Smart | Brochure (English) | 5.39MiB |
