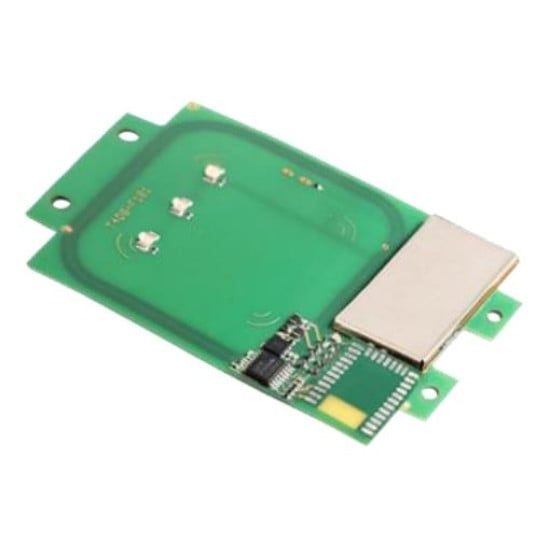

Name: Elatec TWN4 MultiTech 3-I HF PCB | T43O-F2C0-I
Brand: Elatec
SKU: 92-1243-HF-PB
Price: 155.92 GBP
Availability: InStock

Elatec TWN4 MultiTech 3-I HF PCB | T43O-F2C0-I

Part Number:

Stock: In Stock

£155.92

Inc Tax: £187.10

10 or more £145.79

50 or more £135.66

100 or more £125.53

200 or more £120.46

500 or more £115.39

1000 or more £109.08

Qty

Add to Cart

Add to Wish List Compare this Product

Get fast, Free Mainland UK Delivery on all orders over £150 with no hidden fees and no surprises.

With Expert Knowledge on hand, our team is here to help you choose with confidence.

Our Price Match Promise ensures you’ll never pay more than you have to.

Description
Downloads

Elatec TWN4 MultiTech 3-I HF PCB - Option I

Product Code: T43O-F2C0-I

ID Card Centre Code: 92-1243-HF-PB

About the Elatec TWN4 MultiTech 3-I HF PCB - Option I

PCB 50x35x7mm
With Integrated 13.56MHz antenna
Without BLE

Type: TWN4

Style: PCB

Connection: None

Option: Option I

Standards: ISO14443A, ISO14443B, ISO15693, NFC

This Elatec RFID reader will read the following frequencies: 125kHz, 13.56MHz

This Elatec RFID reader will read the following 13.56Mhz technologies: HID iCLASS Seos/Seos Elite, MIFARE® Classic, MIFARE® Classic EV1, MIFARE® Mini, MIFARE® DESFire EV1, MIFARE® DESFire EV2, MIFARE® Plus S, X, MIFARE® Pro X, MIFARE® Smart MX, MIFARE® Ultralight, MIFARE® Ultralight C, MIFARE® Ultralight EV1, NTAG2xx, PayPass, SLE44R35, SLE66Rxx (my-d move), Topaz, Calypso, CEPAS, CTS, Moneo, Pico Pass, SRI4K, SRIX4K, SRI512, SRT512, NFC Forum Tag Type 1-5, Sony FeliCa, EM4x33, EM4x35, HID iCLASS, HID iCLASS SE/SR/Elite, ICODE SLI, LEGIC Advant, M24LR16/64, Pico Pass, SRF55Vxx (my-d vicinity), Tag-it,

Elatec offer an extensive range of products which are almost assured to meet your requirements with LF/HF card technologies. Being able to read over 60 different card technologies enables the TWN4 range of products to be flexible yet robust as a product.

Applications for these readers include: Parking; EV Chargers; Ticket POS; Vending; PC Login, Mobility; Fitness Equipment; Driver ID; Access Control; Elevators; Library book management; Time and Attendance; Document Management; Health Care; Gaming; Locker lock – the only real limit is your imagination!

The TWN4 range of reader has a huge amount of configurability enabling you to read over 60 different technologies concurrently and to adjust the output by utilising the Appblaster software – this gives you complete control over what cards you wish to read and how the output is configured.

Special Features:

Powerful SDK for writing Apps which are executed directly on the reader
Infield Upgradeable
Direct chip-commands support
Power down mode for lowest power consumption
Two onboard SAM sockets (Secure Access Module)
CCID and PC/SC 2.01
Additional interfaces for OEM PCB version
I²C, SPI, Clock/Data, Wiegand, CAN
Dedicated expansion bus for connection of LCD, mass storage, etc.
8 GPIOs
Worldwide certifications:
WEEE, RoHS, R and TTE, CE (Europe), FCC (USA), IC (Canada), ACA (Australia / New Zealand), VCCI (Japan), KCC (Korea), ANATEL (Brazil), CFT (Mexico)

All copyrights are registered trademarks and are used under license.

File Name	Size
DS_TWN4_MultiTech_3_HF	430.57KiB
