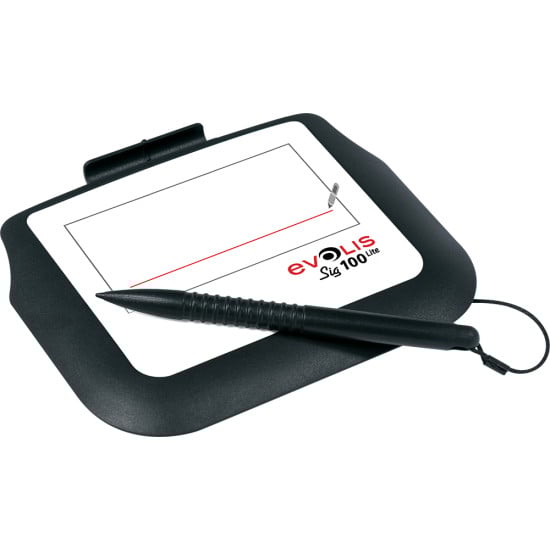

Evolis Electronic Signature Pad Sig100 Lite

Evolis Electronic Signature Pad Sig100 Lite

Manufacturer Product Code:  ST-LTE105-2-UEVL

ID Card Centre Product Code:  95-1000

Electronic signature pads from Evolis allow you to capture signatures quickly, effectively and securely.

• Slim design
• Smooth signing surface
• Plug and play USB connection
• 500Hz and 1040 dpi data acquisition for precise signature capture
• Software compatibility: Windows XP, Windows 7, Windows 8, Server 2003 and 2008, Linux
• The stylus is attached with a strong tether with a swivel for easy, comfortable use
• Encrypted data transfer
• 2-year warranty

About the Evolis Electronic Signature Pad Sig100 Lite

• Monochrome Display
• Resolution:  4036 x 4036 pixels / 2214 x 1130 dpi
• Screen size:  4" (10.5 cm)
• Signing Area:  95 x 47 mm
• Overall Dimensions:  10 x 160 x 120 mm

The Sig100 Lite not only digitises a signature but also utilises biometric data, e.g. writing speed and pressure, for forensically secure signing. When paired with an Evolis card printer, the Sig100 Lite can be used to capture and print the signature directly onto the card design for added security.

AES (Advanced Encryption Standard) encryption ensures secure data transfer between the signature pad and computer.

The compact, lightweight design makes it ideal for use in all working environments. In addition, they connect to a computer via a USB cable, which also provides power, negating the need for an external power source.

Available APIs and the free SDK enable the Evolis signature pads to integrate into existing IT systems and applications easily.

The stylus is attached with a strong tether with a built-in swivel for easy, comfortable use. A 2-year warranty ensures this is a sound long-term investment.

For full detailed specifications, please refer to the downloads section here.

The Sig100 Lite signature pad is ideal for a wide range of industries and applications:

• Leisure and Tourism –  check-in/check-out, registration
• Events - registration
• Retail - payments, collections, loyalty schemes
• Business - contracts, personnel management, visitor management
• Health - admissions, medical records
• Government and Admin Services – registration forms, identity documents
